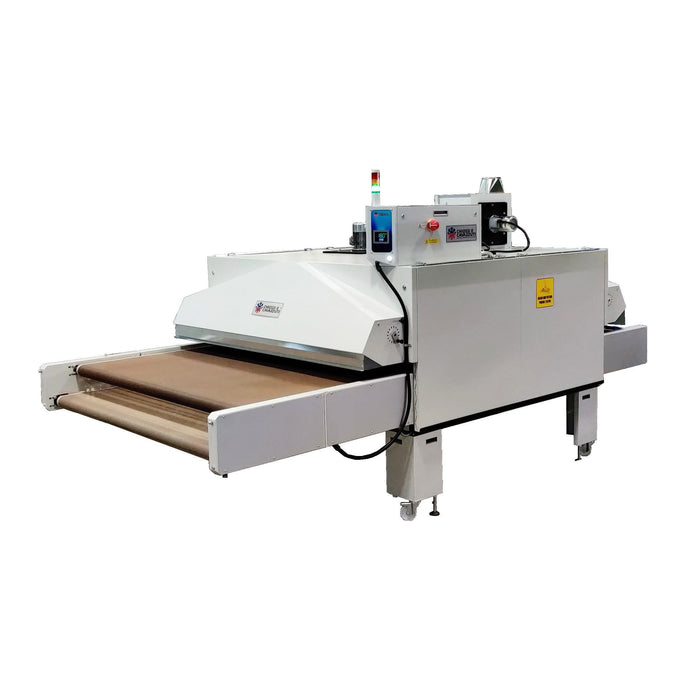

Chiossi e Cavazzuti Dual 1900 - dual belt Conveyor Dryer
The massive advantage of these dryers is the high volume of forced air circulation: this facilitates and accelerates the evaporation of water-based digital inks with unmatched results on the finished garment in medium-long drying process.
Chiossi e Cavazzuti are premier conveyor dryers specifically designed to handle Direct-to-garment inks from Epson F2100 or F3070, Brother GTX Pro, Kornit Breeze, Avalanche, Atlas, HD6, Freejet and many more.
Technical Data | Dual 1900 | Dual 1200 |
---|---|---|
Electrical requirements | 400V 3phase (108V/230V 3 phase optional) | 400V 3phase (108V/230V 3 phase optional) |
Power consumption | 14kW-42A | 19kW-29A |
Max temperature | 356 F | 356F |
Exhaust specification | 180 m³/h - Ø 150 mm | 180 m³/h - Ø 150 mm |
Tunnel length | 78.75" | 78.75" |
Belt Width | 74" | 47.25" |
Production (light-dark) | 300-280 pieces per hour | 240-160 pieces per hour |
Dimension (LxWxH) | 149.6"x49.2"x88.6" | 161.4"x 59.02" x 88.6" |
Shipping Weight | 2000 lbs | 1719 lbs. |
Shipping dimensions - Crate 1 - 86" x 86" x 82 (221 lbs) Crate 2 - 81" x 31" x 61" (1764 lbs)
