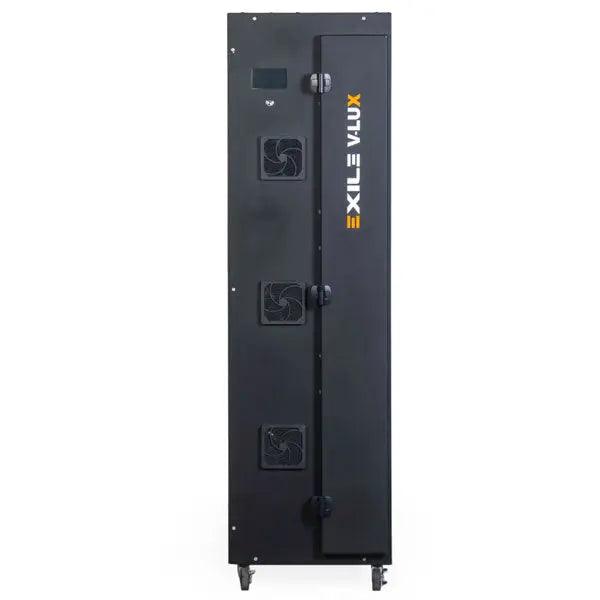

V-Lux Exposure Unit

$0.00 $0.00
SKU ET-V-LUX-LED-EXP

The unique vertical design of the V-Lux Exposure unit allows for simple and easy loading and unloading of a screen.

Using integrated rails to maintain the proper exposure distance from the LED light source. The unit is built with computer-to-screen in mind, and when combined with EXILE’s Spyder system ensures high quality results. Just insert the screen, press a button (or use automated mode) and your screen is exposed with the correct spectrum of UV light.

BENEFITS

  • Designed for Computer-to-Screen
  • Lamp life of 50,000 hours or more
  • Optimized UV LEDs for low energy consumption
  • LCD Touch Screen for fully automatic or manual operation

Dimensions:
V-Lux – 35.25” x 16” x 51” (895 mm x 406 mm x 1295 mm) | Weight: 100 lbs (45.36 kg)
V-Lux XL – 62” x 18” x 64” (1574 mm x 457 mm x 1625 mm) | Weight: 230 lbs (104.32 kg)

SPECIFICATIONS

ELECTRICAL SPECIFICATIONS

Power Requirements: Auto Switching 110 VAC/220 Auto Switching 110 VAC/220
VAC, 50/60 Hz, 650W Max VAC, 50/60 Hz, 1300W Max
Operating Temperature: 50°F – 95°F (10°C – 35°C) 50°F – 95°F (10°C – 35°C)
Storage Temperature: 40°F – 122°F (5°C – 50°C) 40°F – 122°F (5°C – 50°C)
Operating Humidity: 35% – 75% Non-Condensing 35% – 75% Non-Condensing
Operating Mode: Auto/Manual On/Off Auto/Manual On/Off
Exposure Setup: 4.3” Color Resistive 4.3” Color Resistive
Touch LCD Touch LCD

PHYSICAL SPECIFICATIONS

Outside Dimensions: 35.25” x 16” x 51” 62” x 18” x 64”
(including door, fan (895 x 406 x 1295 mm) (1574 x 457 x 1625 mm)
cover and casters)
Operating Dimensions: 33.5 +2” (900 mm) for fan 48” x 60” (1219 x 1524 mm)
for fan spacing and max for fan spacing and max
screen width (H and D can screen width (H and D can
be the same) be the same)
Max Screen Size: 30” x 40” (760 x 1016 mm) 52” x 60” (1321 x 1524 mm)
Weight: 100 lbs (45.36 kg) 230 lbs (104.32 kg)

Download Product PDF

Typically ships directly from the manufacturer and is not in-stock at SPSI.


To check availability of in-stock equipment call our Sales Department at 800-876-7774 or email us
