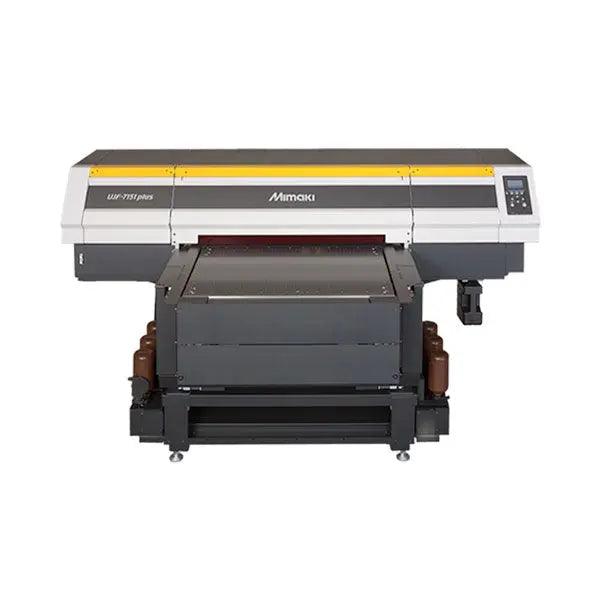

Mimaki UJF-7151 Plus Flatbed UV Inkjet Printer

$0.00 $0.00
SKU MIM-UJF-7151-WTY

Most Robust Small Format UV-LED Flatbed On The Market

This state-of-the-art model is geared for on-demand printing. Both its compact size and full line of features are ideal for creating specialty graphics or signage; or for customization, manufacturing and just-in-time production.
  • Print area of 28” x 20”; up to 6” thick
  • Print on a variety of substrates, including plastic, metal, wood, leather and glass
  • Enclosed print area reduces dust contamination and UV exposure
  • All ink channels offer Mimaki Circulation Technology
  • Automated head height control
  • Eco-friendly with low VOC, GREENGUARD Gold certified UV-LED inks
  • Pair with our desktop 3D printer to produce jigs, molds for thermoforming or custom models
  • RIP software RasterLink6 included

Specifications

Printhead

Six on-demand piezo heads in a staggered array

Print Resolutions

1,200 dpi

Print Speed (4 Color Mode)

up to 5.2 min / bed SqFt/Hr (5.2 min / bed m2/h)

Maximum Print Area

27.9″ x 20.0″ (710 × 510 mm)

Maximum media width

28.7″ (730 mm)

Maximum Media Thickness

up to 6.02″ (153 mm)

Maximum Media Weight

22.0 lbs. (10.0 kg)

Ink Type

U.S. & Canada- LH-100, LUS-120, LUS-350 | Mexico, Central & South America- LH-100, LUS-120, LUS-350

Interface

Ethernet 1000BASE-T, USB2.0 Hi-speed

Power Supply

Single-phase AC100 – 120V / AC200 – 240V

Power Consumption

AC100V: 1.3kW or less

Operational Environment

Temperature 59° – 86° F (15-30° C)
Humidity: 35–65 % RH (Non condensing)

Dimensions (W × D × H)

86.34″ x 61.89″ x 50.12″ (219.3 x 157.2 x 127.3 cm)

Weight

698.87 lbs. (317 kg)

Certifications

VCCI class A, FCC class A, ETL UL 60950-1, CE Marking (EMC, Low voltage, Machinery directive, and RoHS), CB, REACH, Energy Star
